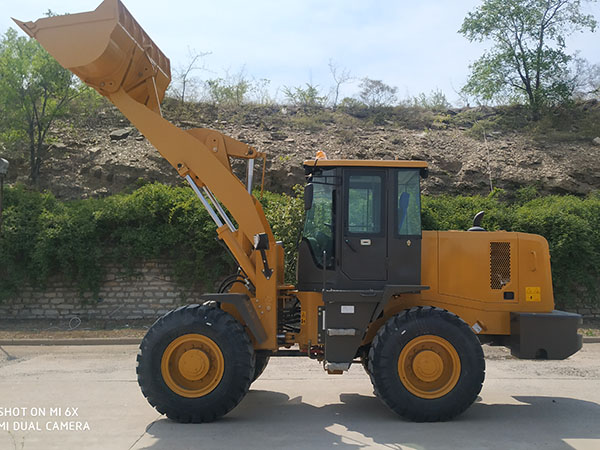

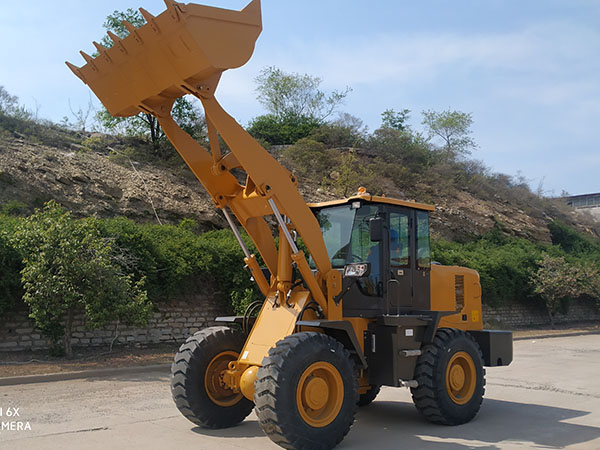

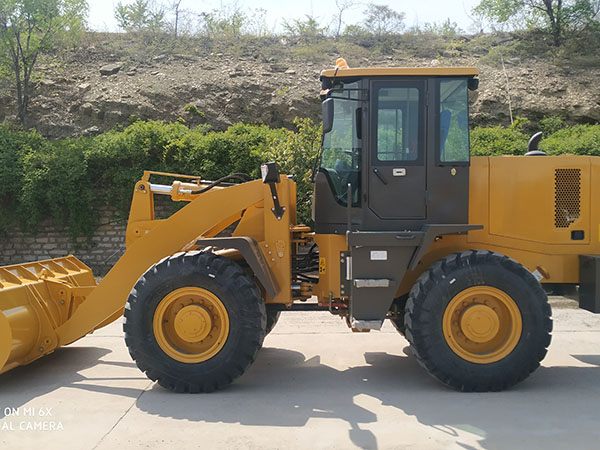

SHANMON836裝載機

山東威猛工程機械有限公司

公司地址：山東省青州市南環路9567號

2019-12-7

609

信息詳情

一、性能介紹：Performance description:

·濰柴發動機,優化變矩器匹配,大幅度提高牽引力,同時燃油消耗降低高達5%。Weichai emission engine, optimized moment converter match, greatly increase traction, while fuel consumption is reduced by up to 5 %
·加大鏟斗,生產效率提高12%。12 per cent increase in productivity by increasing the number of shovels
·18Mpa工作液壓系統壓力。18 Mpa working hydraulic system pressure, efficient energy saving
·配重更大,負載能力更大。Greater weight and load capacity
·卸載高度提高到3.1米,等同于ZL50型。Increased unloading height to 3.1 M, equivalent to ZL50
·全新冷卻系統設計,可滿足-20~43℃環境溫度要求。The new cooling system design can meet the requirements of -20 ~ 43 °C ambient temperature
·發動機安裝增加減震裝置,進一步改善駕駛室密封性,降低震動和噪音。Installation of additional shock absorbers to further improve cab sealing and reduce vibration and noise
·整機設計滿足國家強制性噪音及安全標準要求。The whole machine design meets the National mandatory noise and safety standards requirements

二、技術參數Technical parameters

Performance	1	額定載重量 rated loading	3000kg
	2	整機重量 overall weight	9600kg
	3	斗容量 bucket capacity	1.8-2.5m3
	4	最大牽引力 maximum traction force	95KN
	5	最大掘起力 maximum breakout force	127KN
	6	最大爬坡能力 maximum grade ability	30℃
	7	最大卸載高度 maximum dump height	3100mm
	8	最大卸載距離 maximum dump reach	966mm
	9	整機外形尺寸 overall dimension (L×W×H)	689024303070mm
	10	最小轉彎半徑 minimum turning radius	5097mm
發動機Engine	11	型號model	Deutz enginesWP6G125E22
	12	型式type	直列、水冷、四沖程、直噴 Vertical, in-line, water cooled, 4-stroke diesel engine
	13	汽缸數-缸徑行程NO. of cylinder-borestroke	6-108*125
	14	額定功率 rated power	92kw—2200r/min
	15	最大扭矩 maximum torque	500N.m
	16	最低燃油消耗率 min. fuel-consume ratio	≦210Kw/h
傳動系統 Transmission system	17	變矩器型式 torque converter	YJ315-X
	18	變速箱型式 gearbox mode	定軸常嚙合式 Power shaft normally engaged straight gear
	19	檔位數 gears	前進檔4個，倒退檔2個 4 forward 2 reverse
	20	最高車速 maximum speed	40km/h
驅動橋Drive axles	21	主減速式： main reducing spiral	螺旋傘齒輪一級減速bevel gear grade 1reduction
	22	輪邊減速型式 decelerating mode	一級行星減速 Planetary reduction grade 1
	23	軸距 wheel base (mm)	2740mm
	24	輪距 wheel tread	1800mm
	25	最小離地間隙 ground clearance	400mm
液壓系統 Hydraulic system	26	系統工作壓力 system working pressure	16,5MPa
	27	動臂提升時間 boom lifting time	4.83S
	28	三項和 total time	9.15±0.5s
制動系統 Brake system	31	行車制動 service brake	氣頂油鉗盤式四輪制動 air assist disc brake on 4 wheels
制動系統 Brake system	32	駐車制動 parking brake	手動嵌盤式 Manual disk brake
輪胎 Tyre	33	規格 type specification	17.5-25
	34	前輪氣壓 front tyre pressure	0.4Mpa
	35	后輪氣壓 rear tyre pressure	0.35Mpa
